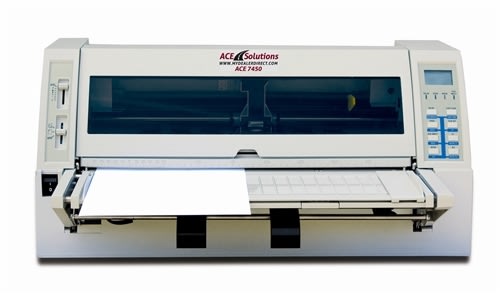

Model ACE 7450
*Denotes model differences from the AMT 7350
Print Head Duty Cycle increased by 200 million stroke/pin
Ribbon life increased by 5 million characters
NEW Interfaces: USB, NIC and Serial
7450 Standard Front and rear paper paths, cut sheet
Method:
Serial Impact dot-matrix, bi-directional and logic seeking
Speed:
High Speed Draft 600 cps (15 cpi) High Speed Draft 400 cps (10 cpi) Draft 300 cps (10 cpi)
Letter-Quality 150 cps (10 cpi)
Pitches (cpi):
10, 12, 15, 17, 20 24 and Proportional
Line Feed Speed:
6 inches per second
Fonts:
High-speed draft, Draft, Roman, Sans Serif, Courier, Prestige, Script, Gothic, OCR-A, OCR-B,Orator and Orator-S
Graphics:
Up to 360V x 360H
Print Width:
136 columns (10 cpi)
Printhead:
Number of pins 24
Dot Diameter:
0.010 inch (0.25 millimeter)
Head Life:
500 million stroke/pin (Draft)
Operator Panel:
Graphic LCD, Paper path lever, Gap adjust lever, 5 User Defined Profiles, Quick Access Setup Menu
Bar Codes: Code 3 of 9, Interleaved 2 of 5, Code 128, UPC-A, UPC-E, EAN-13, EAN-8, Codabar, and POSTNET™
Buffer:
64 K Bytes
Ribbon Life:
20 million characters
Options:
Automatic cut sheet feeder, Ethernet interface
Firmware:
ACE Part # 130083.3 F&I Firmware: Reynolds & Reynolds, docuPad DMV Barcode Forms,
Dealertrack, Dealerbuilt, Automate, Autosoft, MPK and most other Dealership Management Systems
Interfaces:
USB, NIC and EIA RS-232-C serial with automatic port switching
Paper Handling:
Fanfold paper - front push tractor
Paper:
width 8 - 15"
Paper:
weight 16 - 24 lbs
Label thickness:
.003 - .007"
Fanfold forms:
Rear push tractor
Paper width:
8 - 15"
Paper thickness:
Original + 6 copies
Cut Sheet:
Manual front feed
Paper width:
Min 3"- 16.9" max
Paper length:
Minimum 7.2"- 37" max
Paper thickness:
Original + 6 copies
Physical:
Height 11.6 in. (294 mm)
Width 25 in. (635 mm)
Depth 18.3 in. (465 mm)
Weight 52 lbs. (23.5 kg)
Electrical:
Power 90-130 v 47-63 Hz
Noise:
58 dBA (LQ mode)
Certifications:
UL & C-UL Listed, FCC Class B
Reliability:
One year, parts and labor, return to Depot Warranty
MTBF:
10,000 hours @ 25% duty cycle
